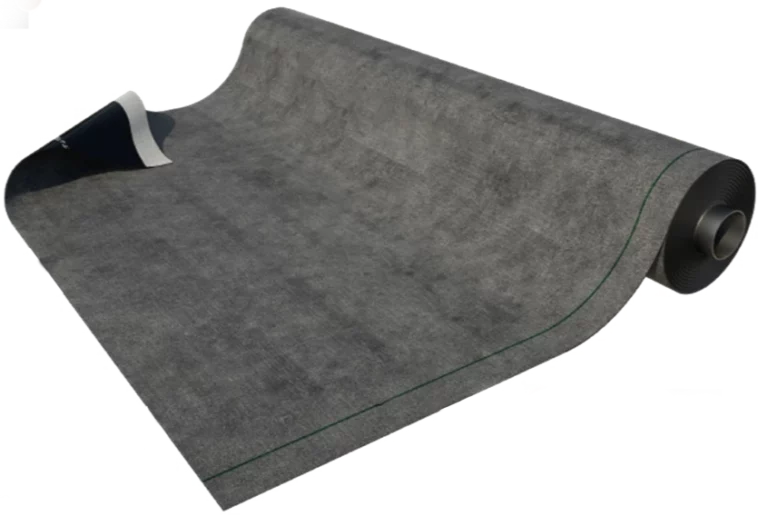

Dam Sealing Fabric
Our dam sealing fabric forms part of a complete fabric-and-binder waterproofing system. We supply the fabric and install the specified system over the prepared surface, including its reinforced details and curing requirements.
Product description and supply
Dam sealing fabric is the fabric component of a specified fabric-and-sealing-medium barrier. The fabric, compatible binder or coating, joints and substrate work together; the untreated carrier fabric is not itself the completed waterproof lining.
Geosynthetics South Africa supplies the material against an identified grade and project scope. Fabric construction, compatibility, dimensions and the approved installation arrangement are confirmed with the technical submission and quotation.
Choose the lining route for the project
Fabric-based sealing, welded geomembranes and geosynthetic clay liners have different design and installation requirements. Consider the subgrade, water depth, settlement, exposure, water chemistry, access and operating conditions before selecting a route.
Grade-specific confirmation
Request the exact supplied fabric designation, fibre, mass, roll size, strength and binder compatibility with the quotation. The dam sealing fabric is a separate product from TechPave C040 paving fabric; their properties and intended uses must not be interchanged.
Applications and uses
We supply and install this product for:
- Engineered fabric-and-binder waterproofing systems for appropriate dam and water-retention surfaces.
Why choose Dam Sealing Fabric?
- Fabric reinforcement for waterproofing systems
- Preparation and detailed application
- Supply and installation of the complete system
Installation and technical guidance
Installation and QA/QC
Agree subgrade preparation, anchorage, penetrations, joints, approved application method and protection. Define inspection hold points and an appropriate commissioning or watertightness check. Retain material records, batch references and an as-built detail schedule.
Specification and quotation inputs
| Item | Confirm for this project |
|---|---|
| Service | Water use, depth, exposure, chemistry and operating temperature. |
| Ground | Dam geometry, subgrade condition, settlement and anchorage. |
| System | Exact fabric and sealing medium with written compatibility. |
| Quality | Approved procedure, inspection records and commissioning criteria. |
Match the exact supplied grade to current documentation and the approved project specification. Product availability and lead time are confirmed with the quotation.
Questions engineers and contractors ask
Is the fabric waterproof by itself?
No. Specify the complete approved fabric-and-sealing-medium system.
Choose the scope you need
Supply only; manufacture or fabrication; supply and delivery; or supply with a defined installation and QA/QC scope. The quotation identifies materials, responsibilities, testing and the required handover records.
Design and procurement inputs
Specify the complete binder and fabric system, substrate preparation, reinforcement details, curing and exposure conditions. Fabric alone does not provide the completed waterproof barrier.
Provide the product grade or performance specification, drawings or BOQ, quantities, site location and required date. We will define supply, delivery and any agreed installation and QA/QC responsibilities in the quotation.
Request a product-specific quotation →Technical documentation and specification support
Request the current supplied-grade datasheet, applicable installation guidance and supporting quality records from our technical team.
