HDPE Geocell - GS100-445 (Textured) 100 mm (3 m × 11 m Panel)
R2,244
We supply HDPE Geocell - GS100-445 (Textured) 100 mm (3 m × 11 m Panel). Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.

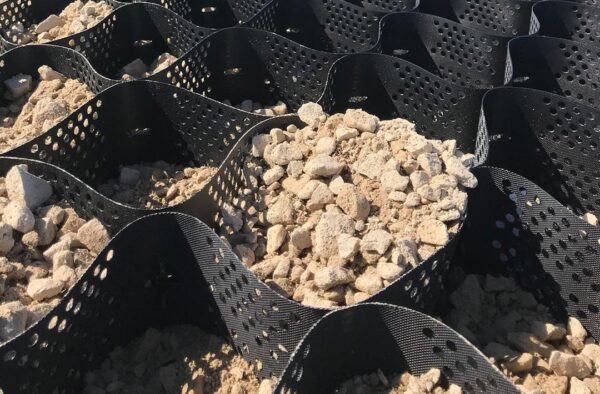

GS100-445 is a 100 mm deep textured HDPE geocell that expands into a three-dimensional honeycomb. Filled cells confine soil or aggregate to support slope erosion protection, channel lining and load-support systems. Each expanded 3 m x 11 m panel covers 33 m².
Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.
Need help selecting the right grade? View the product selection guide →
Description
Geosynthetics South Africa supplies the HDPE Geocell - GS100-445 (Textured), a high - performance cellular confinement system made from 100% virgin HDPE.
With a 100 mm cell depth and 445 mm welding distance, this geocell delivers superior confinement and load distribution for civil, mining, and environmental projects.
Our custom 3 m × 11 m panels (33 m² expanded area) speed handling, transport and installation compared to traditional panel sizes
while maintaining the same expanded cell size for consistent performance.
Key applications in South Africa & Africa:
• Channel protection and lining for stormwater/irrigation canals

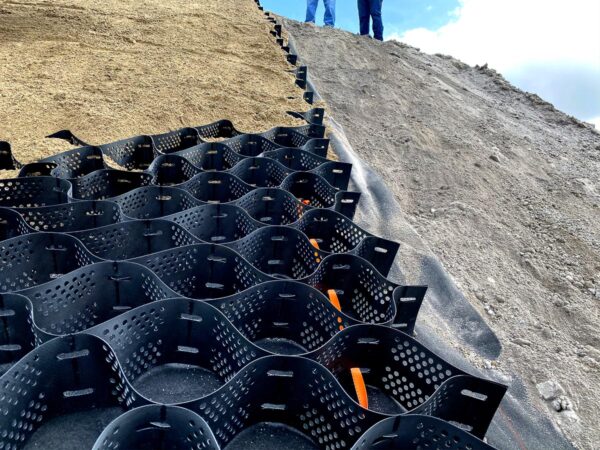

• Slope stabilisation and erosion control on road embankments and mine tailings
• Liner protection for HDPE geomembranes in dams and process ponds
• Retaining walls and reinforced earth structures
Technical highlights (typical):
• Material: 100% Virgin HDPE, textured & perforated
• Density: 0.935-0.965 g/cm³ (ASTM D1505)
• Sheet thickness: 1.5 mm ±5% (ASTM D5199)
• Seam peel strength: ≥14.2 kN/m (USACE GL - 86 - 19)
• Tensile strength at yield: ≥22 kN/m (ASTM D638)
• ESCR: ≥5000 hrs (ASTM D1693)
• OIT: ≥150 min (ASTM D3895)
Supply, delivery and installation across Africa
Geosynthetics South Africa undertakes projects through three service options:
- Supply only - products supplied to the agreed specification.
- Supply and delivery - materials and logistics coordinated to your project site.
- Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.
For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
Discuss your supply or installation project | Explore our product range
Supply, delivery & installation
South African supply
We are the South African supplier of HDPE geocell confinement systems. We have ready stock of standard grades and formats for South African projects.
Delivery & cross-border supply
We supply HDPE geocell confinement systems across South Africa and Southern Africa, including cross-border delivery. We coordinate site access, unloading and cross-border documentation for your order.
How we install
We install HDPE geocell confinement systems. Shape and prepare the subgrade and install the specified separation or protection layer. Expand, connect and anchor geocell panels to the designed geometry. Place the approved infill, compact or finish it as specified and inspect cell connections and edges.
Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.
Get a supply, delivery & installation quoteProduct documents
Ask for the current datasheet and installation instructions for HDPE Geocell - GS100-445 (Textured) 100 mm (3 m × 11 m Panel). Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.
Technical datasheets · Installation guides
Request documents for this gradeEngineer specification
Supply and install HDPE Geocell - GS100-445 (Textured) 100 mm (3 m × 11 m Panel). Textured, perforated HDPE geocell, exact GS depth and 445 mm weld spacing as named; density 0.935–0.965 g/cm³ (ASTM D1505/D792); post-texture sheet thickness ≥1.65 mm (ASTM D5199); carbon black ≥2% (ASTM D1603/D4218); expanded panel 3 × 11 m. Installed by an IAGI Installer Member.
SELECTION · SPECIFICATION · PROJECT SUPPLY
Choose the right specification
Match the erosion or confinement system to slope geometry, soil, water exposure, loading and the intended finish.
- Identify whether the duty is surface erosion, cellular confinement or a cementitious lining.
- Confirm the exact product, substrate, anchorage, infill and joint or overlap details.
- Use the product procedure and engineered layout rather than transferring fixing rules between systems.
Define the quality records
Inspect product identity, prepared ground, fixing and continuity, then record infill or activation and any specified acceptance checks.
For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.
Why Geosynthetics South Africa
One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
