PolyTape 30kN/m Woven PP Geotextile (5.3m x 100m Roll)
R6,900
We supply PolyTape 30kN/m Woven PP Geotextile (5.3m x 100m Roll). Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.

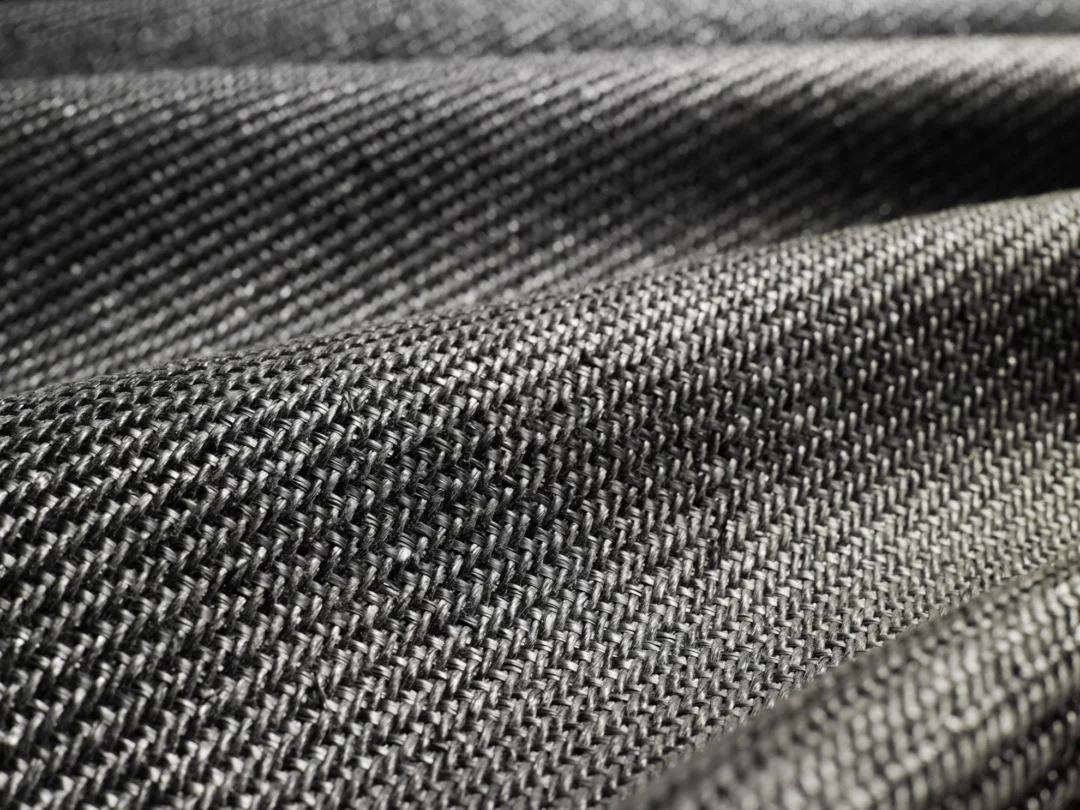

PolyTape 30 is a woven slit-film polypropylene geotextile for soil separation and reinforcement beneath roads, working platforms and aggregate surfaces. Its woven structure helps prevent aggregate from mixing with the subgrade and provides tensile support. This 30 kN/m grade is supplied in 5.3 m x 100 m rolls.
Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.
Need help selecting the right grade? View the product selection guide →
Description
Product and application
PolyTape 30kN/m Woven PP Geotextile (5.3m x 100m Roll)
PolyTape™ woven polypropylene geotextile in the listed tensile grade and roll size, for specified separation, reinforcement or fabrication applications.
Specification check: Tensile properties in both directions, elongation and installation requirements. For filtration, confirm opening size and hydraulic behaviour rather than assuming a high-flow or non-clogging result.
Ordering information
The product identification above states the listed format. Confirm current dimensions, documentation, availability and quantity in your quotation.
Supply, delivery and installation across Africa
Geosynthetics South Africa undertakes projects through three service options:
- Supply only - products supplied to the agreed specification.
- Supply and delivery - materials and logistics coordinated to your project site.
- Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.
For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
Discuss your supply or installation project | Explore our product range
Technical Specifications
| Strength (kN/m) | 30 |
|---|---|
| Material | Woven slit-film polypropylene (PP) |
| Roll width (m) | 5.3 |
| Roll length (m) | 100 |
| Datasheet code | WG30HF |
Supply, delivery & installation
South African supply
We are the South African supplier of PolyTape woven polypropylene geotextiles. We have ready stock of standard grades and formats for South African projects.
Delivery & cross-border supply
We supply PolyTape woven polypropylene geotextiles across South Africa and Southern Africa, including cross-border delivery. Roll handling, weather protection and site unloading are coordinated with your delivery.
How we install

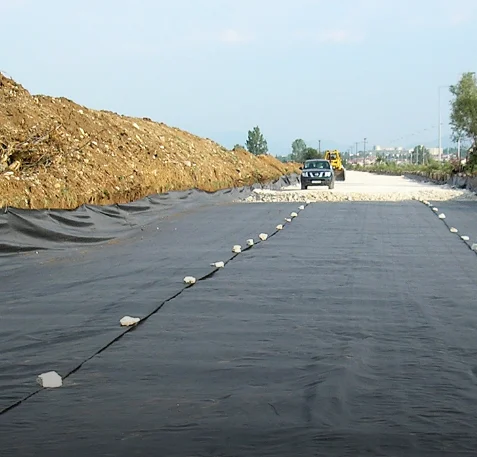

We install PolyTape woven polypropylene geotextiles. Prepare the subgrade and lay the selected woven fabric in the specified direction. Form the designed overlaps or sewn joints and secure the fabric during placement. Place and compact the overlying fill carefully, checking for displacement and damage.
Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.
Get a supply, delivery & installation quoteProduct documents
Ask for the current datasheet and installation instructions for PolyTape 30kN/m Woven PP Geotextile (5.3m x 100m Roll). Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.
Technical datasheets · Installation guides
Request documents for this gradeEngineer specification
Supply and install PolyTape 30kN/m Woven PP Geotextile (5.3m x 100m Roll). Woven polypropylene, exact WG-HF grade as identified by its datasheet code; Tensile Strength (MD): 30 kN/m (EN ISO 10319); Tensile Strength (CMD): 30 kN/m (EN ISO 10319); Characteristic Opening Size O₉₀: 300 µm (EN ISO 12956); Water Permeability VI₅₀: 39 mm/s (EN ISO 11058). Installed by an IAGI Installer Member.
SELECTION · SPECIFICATION · PROJECT SUPPLY
Choose the right specification
Start with the required separation, filtration, drainage or protection function, then compare the relevant properties.
- For filtration, review soil retention, opening size, permeability and clogging conditions.
- For protection, assess puncture, loading and contact conditions within the complete lining system.
- Confirm tensile and survivability requirements, reporting basis, roll dimensions and installation details.
Define the quality records
Match roll labels and supplied-grade data to the approved specification. Inspect placement, continuity, joints and damage before covering.
For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.
Why Geosynthetics South Africa
One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
