Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m
Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m
  1. Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m
  2. Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m

Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m

R1,905

← Back to Catalogue Search

We supply Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m. Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.

2m x 1m x 1m welded-mesh galvanised gabion basket for rock-filled walls, landscaping and erosion-control structures. The square welded panels create a defined architectural form. This basket uses 50 x 50 mm mesh.

Request a quote or specification check

Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.

Need help selecting the right grade? View the product selection guide →

Category:

Description

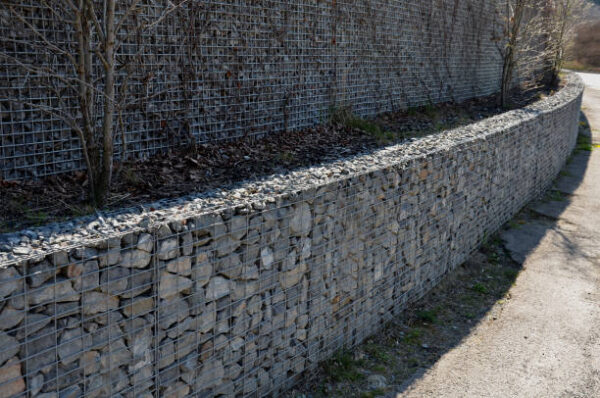

Made from Galvanized Square Weld Mesh, Our Welded Mesh Gabion Baskets are preferred for decorative and architectural retaining walls, boundaries and mines . With panels joined using rings, our Welded Mesh Gabion Baskets offer a clean and neat look with better aesthetics.  Available in 50x50 , 75x75 and 50x100 mesh openings, all with 3mm Galvanized mesh.

Welded Mesh 3.0mm Technical Specifications

Item 50mm x 50mm Aperture 50mm x 100mm Aperture 75mm x 75mm Aperture
Mesh Wire Diameter (mm) 3.14 3.14 3.14
Binding Wire Diameter (mm) 2.2 2.2 2.2
Tensile Strength - Wire 350-550 Mpa 350-550 Mpa 350-550 Mpa
Galvanising Class A Class A Class A
Zinc Coating g/m2 285 g/m2 285 g/m2 285 g/m2
Wire Breaking Strength 2.2kN 2.2kN 2.2kN
Wire Classification Mild Tensile Steel Mild Tensile Steel Mild Tensile Steel
SANS Specs 462:2005 462:2005 462:2005

Supply, delivery and installation across Africa

Geosynthetics South Africa undertakes projects through three service options:

  • Supply only - products supplied to the agreed specification.
  • Supply and delivery - materials and logistics coordinated to your project site.
  • Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.

For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.

Discuss your supply or installation project | Explore our product range

Supply, delivery & installation

South African supply

We are the South African supplier of woven and welded gabion baskets. We have ready stock of standard grades and formats for South African projects.

Delivery & cross-border supply

We supply woven and welded gabion baskets across South Africa and Southern Africa, including cross-border delivery. Flat-packed baskets and installation accessories can be delivered together.

How we install

We install woven and welded gabion baskets. Prepare and level the foundation, assemble the specified baskets and connect adjacent units. Fit diaphragms, bracing and fasteners before filling with approved graded rock in controlled layers. Close and secure the lids, checking the completed profile and connections.

Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.

Get a supply, delivery & installation quote

Product documents

Ask for the current datasheet and installation instructions for Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m. Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.

Technical datasheets · Installation guides

Request documents for this grade

Engineer specification

Supply and install Galv Welded Mesh (50MMx 50MM) Gabion Basket 2mx1mx1m, manufactured by Geosynthetics Africa Group (manufacturing). Square welded mild-steel mesh gabion basket; aperture 50 × 50 mm; Class A galvanising to SANS 675; basket size and wire diameter exactly as named; connectors and bracing to the approved construction detail. Installed by an IAGI Installer Member.

SELECTION · SPECIFICATION · PROJECT SUPPLY

Choose the right specification

Select baskets or mattresses as part of the designed retaining or erosion-protection structure.

  • Confirm woven or welded construction, mesh, wire, coating and dimensions.
  • Review foundation, filter, drainage and the approved stone requirements.
  • Use the specified connections, bracing and filling sequence for the structure.

Define the quality records

Inspect materials, foundation and filters, alignment, connections, bracing, stone placement and closure.

For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.

Why Geosynthetics South Africa

One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
