700gsm PVC Dam Liner - Ultra Heavy-Duty Waterproof Liner for Dams & Reservoirs (3m x 50m)
R12,800
We supply 700gsm PVC Dam Liner - Ultra Heavy-Duty Waterproof Liner for Dams & Reservoirs (3m x 50m). Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.
This 700 g/m² PVC dam liner is a flexible, weldable membrane for lining dams, ponds and water-storage reservoirs. It creates a water-retaining barrier and can be joined into panels to suit the lining layout. Supplied in 3 m x 50 m rolls for agricultural and water-containment projects.
Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.
Need help selecting the right grade? View the product selection guide →
Description
Product and application
700gsm PVC Dam Liner - Ultra Heavy-Duty Waterproof Liner for Dams & Reservoirs (3m x 50m)
PVC liner supplied in the listed mass grade and roll format for water-storage lining or an approved project-specific application. Fabrication and installation can be quoted separately.
Specification check: Actual thickness, reinforcement, exposure conditions, liquid compatibility and required certification. Mass in g/m² is not a thickness measurement. Potable-water use requires the applicable certificate for the supplied product.
Ordering information
The product identification above states the listed format. Confirm current dimensions, documentation, availability and quantity in your quotation.
Supply, delivery and installation across Africa
Geosynthetics South Africa undertakes projects through three service options:
- Supply only - products supplied to the agreed specification.
- Supply and delivery - materials and logistics coordinated to your project site.
- Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.
For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
Discuss your supply or installation project | Explore our product range
Technical Specifications
| Dimensions | 300 × 500 × 7 cm |
|---|
Supply, delivery & installation
South African supply
We are the South African supplier of reinforced PVC geomembrane liners. We have ready stock of standard grades and formats for South African projects.
Delivery & cross-border supply
We supply reinforced PVC geomembrane liners across South Africa and Southern Africa, including cross-border delivery. Roll handling, weather protection and site unloading are coordinated with your delivery.

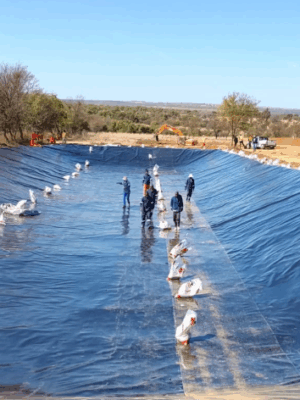

How we install
We install reinforced PVC geomembrane liners. Prepare a smooth, clean supporting surface and place the specified protection layer. Lay and hot-air weld the PVC panels, form penetrations and perimeter terminations, and test the completed seams. Check the potable-water formulation where drinking-water contact is required.
Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.
Get a supply, delivery & installation quoteProduct documents
Ask for the current datasheet and installation instructions for 700gsm PVC Dam Liner - Ultra Heavy-Duty Waterproof Liner for Dams & Reservoirs (3m x 50m). Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.
Technical datasheets · Installation guides
Request documents for this gradeEngineer specification
Supply and install 700gsm PVC Dam Liner - Ultra Heavy-Duty Waterproof Liner for Dams & Reservoirs (3m x 50m). Polyester-scrim reinforced PVC geomembrane, nominal mass 700 g/m²; UV-stabilised; hot-air welded seams; published tensile strength 1600 N/50 mm. Installed by an IAGI Installer Member.
SELECTION · SPECIFICATION · PROJECT SUPPLY
Choose the right specification
Containment is selected around the stored liquid, ground conditions, exposure and required barrier system.
- Confirm polymer, thickness, surface finish and the actual operating temperature and chemistry.
- Review the subgrade, protection layers, anchorage, penetrations and joining method.
- Use the current supplied-grade datasheet and project acceptance criteria, with material and installation records.
Define the quality records
Specify roll and batch traceability, material acceptance, joint inspections and appropriate tests for the selected liner system.
For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.
Why Geosynthetics South Africa
One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
