Potable Water Tank Lining Specialists

Scope: Potable water Lining of leaking concrete water reservoir

Location: Rustenburg, North West Province, South Africa

Project: Concrete Potable Water Reservoir Tank Lining
Installer & Supplier: Geosynthetics Africa (Pty) Ltd
Completion: On Time & Within Budget

The Problem: Aging Concrete and Water Contamination Risks

Municipalities across South Africa are facing a critical need to extend the lifespan of aging infrastructure while maintaining the integrity of potable water supply systems. Rustenburg Municipality faced similar challenges with a concrete reservoir tank that had begun showing signs of deterioration — including micro-cracking, water seepage, and increased risk of contamination. Traditional waterproofing methods were proving unsustainable, and compliance with potable water safety standards became a top priority.

The tank needed a permanent, hygienic, and certified lining solution that could withstand the internal hydraulic pressure, bond securely to vertical concrete walls, and meet South African drinking water regulations.

The Solution: Certified PVC Lining System by Geosynthetics Africa

Geosynthetics Africa was selected as the preferred contractor due to our unmatched technical expertise, rapid deployment capacity, and proven track record in potable water containment systems across Africa. We designed and implemented a full lining system that delivered both long-term performance and compliance with SANS potable water standards.

Our approach ensured:

- Full tank encapsulation using a certified potable water liner

- Protection of the liner from concrete abrasion

- Reinforcement on vertical surfaces for mechanical security

- Dual sealing through glue application and thermal welding

Scope of Work Included:

- Surface preparation of internal concrete walls and floor

- Installation of Mirafi Liner Protection Geotextile to prevent abrasion and punctures

- Custom-fit lining using PVC 720gsm Potable Water Grade Liner

- Application of Vertical Concrete Wall Reinforcement Anchors to secure vertical liner placement

- Use of Geosynthetics Africa’s proprietary PVC Glue for high bond strength adhesion

- Hot Air Welding and Testing of seams to ensure leak-proof connections

- Final QA/QC inspections in line with municipal and SANS 1731 standards

Products Used on This Project

Product	Description

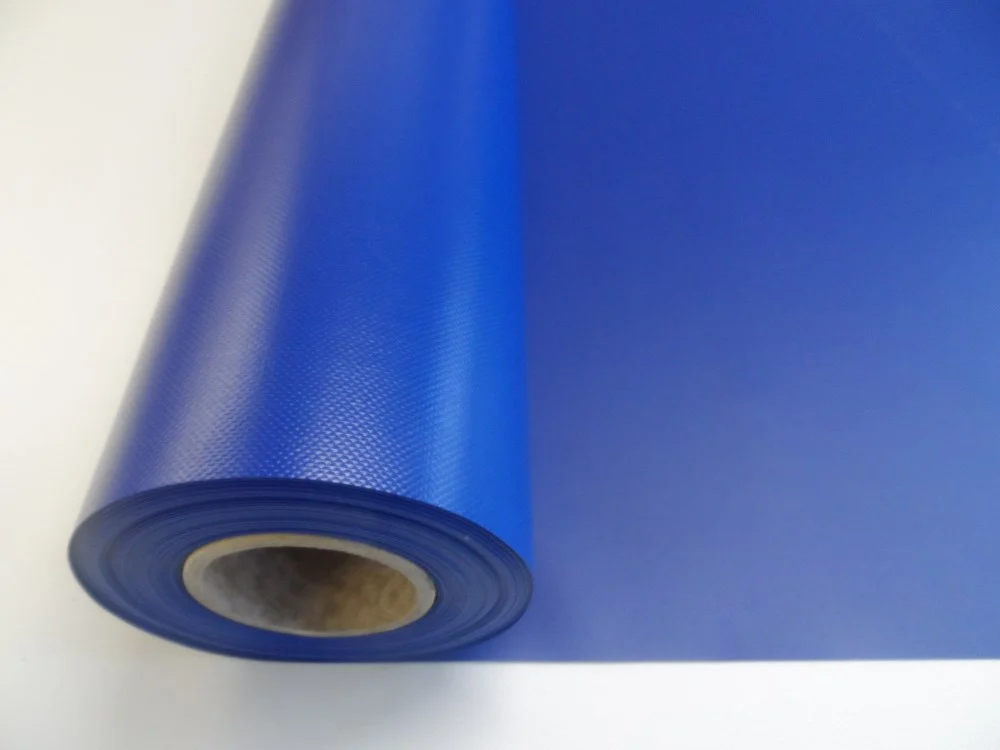

PVC 720gsm Potable Water Grade Liner	Certified for direct contact with drinking water; UV-stabilized and chemically inert
Mirafi 400gsm Geotextile Underlay	High-strength, needle-punched protection layer beneath the liner to prevent mechanical damage
Vertical Wall Liner Reinforcement System	Secure anchoring detail for vertical surfaces to resist delamination and liner displacement
Geosynthetics Africa’s PVC Glue	Engineered for water tank applications with enhanced adhesion properties on concrete substrates
Heat Welding Equipment	Precision thermal welding to create seamless, leak-proof joints across liner panels

Why Geosynthetics Africa?

Geosynthetics Africa (Pty) Ltd has become the go-to partner for reservoir lining and geomembrane systems across Southern, Central, East, and West Africa. With experience spanning mining, municipal infrastructure, agriculture, and industrial containment, we are Africa’s leading supplier and installer of high-performance water containment systems.

We don’t just install liners — we provide engineered containment solutions, backed by decades of geosynthetics expertise, quality assurance, and after-sales support.
