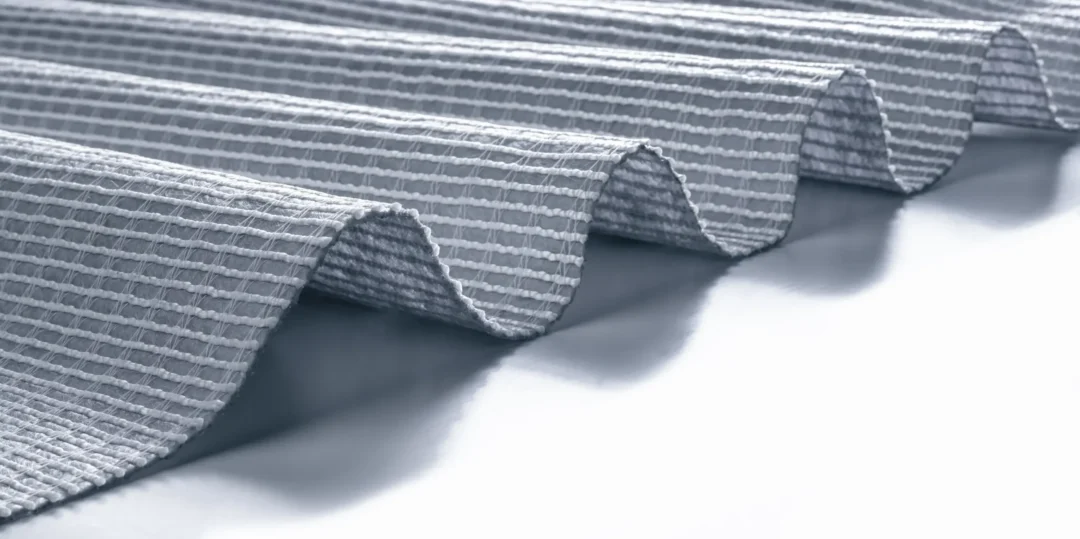

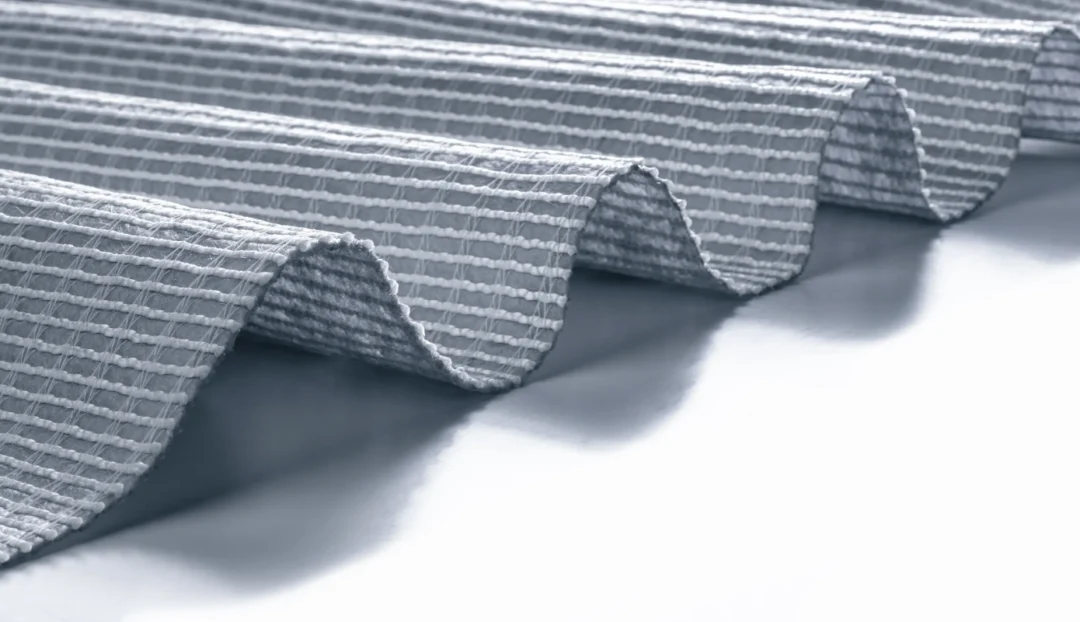

MIRAGRID® PEC 95/95 is a high strength (100Kn) biaxial geocomposite combining polyester geogrid reinforcement with nonwoven geotextile backing. Designed for heavy-duty subgrade stabilisation, soft soils, and high load infrastructure applications.
MIRAGRID PEC 95/95 – High Strength Geocomposite for Weak Ground Engineering
MIRAGRID® PEC 95/95 is a high strength biaxial geocomposite engineered for demanding ground conditions where enhanced reinforcement and load distribution are required.
It combines:
High modulus polyester reinforcement grid (≈100 kN/m class)
Continuous filament nonwoven geotextile backing
This delivers a robust solution for heavy-duty subgrade stabilisation, basal reinforcement and weak ground improvement.
DESIGNED FOR HIGH LOAD APPLICATIONS
MIRAGRID PEC 95/95 is used where standard geocomposites are insufficient and higher tensile capacity is required.
Typical use cases:
Mining haul roads
Heavy traffic roads
Piled embankments
Weak and compressible soils
High load working platforms
Reinforcement over voids or variable ground
WHY ENGINEERS CHOOSE PEC 95/95
High strength biaxial reinforcement (~100 kN/m class)
Superior load distribution across weak subgrades
Combines reinforcement + separation in one layer
Reduces rutting and long-term deformation
Controls settlement in soft ground conditions
Suitable for high load infrastructure
KEY APPLICATIONS
Heavy Duty Subgrade Stabilisation
Haul roads
Industrial pavements
High traffic road bases
Basal Reinforcement
Embankments on soft ground
Load transfer platforms
Piled Embankments
Improved load distribution between piles
Reduced settlement
Ground Improvement
Weak or variable soils
Mining infrastructure
TECHNICAL SPECIFICATIONS – MIRAGRID PEC 95/95
Property
Value
Product Type
Biaxial Geocomposite
Reinforcement
High Modulus Polyester
Backing
Continuous Filament Nonwoven
Tensile Strength (MD)
95 kN/m (min)
Tensile Strength (CMD)
95 kN/m (min)
Nominal Strength
~100 kN/m
Elongation
~10–11%
Tensile @ 2% Strain
22 kN/m
Tensile @ 5% Strain
54 kN/m
Water Permeability
~55 mm/s
Opening Size (O90)
~110 µm
Roll Width
5.3 m
Roll Length
100 m
INSTALLATION SUMMARY
Install on levelled and compacted formation
Lay flat without wrinkles
Overlap ≥200 mm (or as per design)
No trafficking on exposed geocomposite
Place fill by end dumping
Minimum fill thickness: 300–400 mm before compaction
PERFORMANCE BENEFITS
Increased bearing capacity
Reduced settlement and deformation
Improved service life of roads
Reduced maintenance costs
Faster construction and lower material usage
SUPPLY – AFRICA
Geosynthetics Africa supplies MIRAGRID PEC 95/95:
Stock availability South Africa
Bulk project supply
Mining and infrastructure focus
Africa-wide logistics
Contact us for pricing, technical support, and project-specific design input.
