GeoCurtain™ Class 2 Silt Curtain - River Applications - Design-Specific

Request a quote

We supply GeoCurtain™ Class 2 Silt Curtain - River Applications - Design-Specific. Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.

GeoCurtain Class 2 is a floating silt curtain for sediment control during river and canal works. A suspended skirt forms a barrier that helps limit the spread of disturbed sediment in the water. The curtain, skirt depth and anchoring are configured to the site’s currents, water depth and exposure.

Request a quote or specification check

Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.

Need help selecting the right grade? View the product selection guide →

Category: Erosion Control Systems Tag: Silt Curtains

Description

Class 2 Silt Curtains for Moderate Hydrodynamic Conditions

GeoCurtain™ Class 2 systems are engineered for medium-risk environments with moderate wind, current and water movement.

Typical applications:

Rivers
Inland waterways
Calm harbours
Mining discharge zones

These systems are designed to maintain stability under increased hydraulic loading compared to Class 1 systems

Engineering Specification

Floatation: 100mm-150mm closed cell foam
Skirt: 260gsm nonwoven geotextile
Float chamber: 400gsm - 610gsm PVC
Reinforcement:
- High tensile webbing (2T breaking strength)
- Structural reinforcement layers
Connectors:
- Mechanical interlocking connectors
- Marine-grade skirt connection system
Ballast: 6mm chain (continuous pocket)

Structural Enhancements vs Class 1

Increased floatation for stability
Reinforced tensile members
Stronger connection systems
Higher durability materials

Performance Capabilities

Suitable for moderate currents
Maintains vertical profile under flow
Reduced failure risk under wind loading
Improved longevity for longer deployments

Applications Across Africa

River dredging
Mining slurry discharge
Infrastructure construction near waterways
Environmental containment in flowing systems

Supply & Installation

Delivered fully assembled or modular
Installation support includes:
- Flow condition assessment
- Anchor design
- Deployment sequencing

Accessories (Complete System)

Reinforced anchoring systems
High-strength mooring lines
Load transfer connectors
Heavy-duty ballast systems

Supply, delivery and installation across Africa

Geosynthetics South Africa undertakes projects through three service options:

Supply only - products supplied to the agreed specification.
Supply and delivery - materials and logistics coordinated to your project site.
Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.

For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.

Discuss your supply or installation project | Explore our product range

Supply, delivery & installation

South African supply

We are the South African supplier of GeoCurtain silt curtains. Ready-stock standard options are available, with project-specific fabrication for the sizes and details your works require.

Delivery & cross-border supply

We supply GeoCurtain silt curtains across South Africa and Southern Africa, including cross-border delivery. We coordinate site access, unloading and cross-border documentation for your order.

How we install

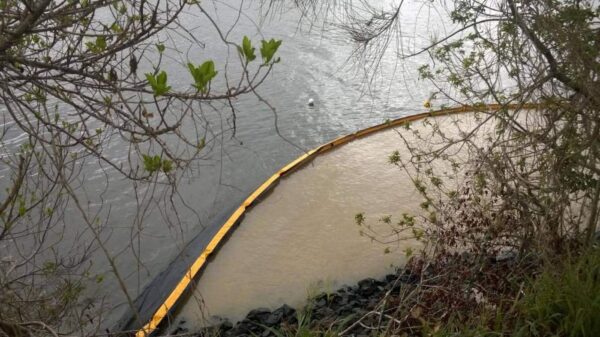

We install GeoCurtain silt curtains. Confirm water depth, currents and the approved mooring layout. Connect curtain sections, flotation and ballast, then deploy and anchor the barrier without leaving gaps. Inspect connections and anchors during the works and monitor turbidity where specified.

Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.

Get a supply, delivery & installation quote

Product documents

Ask for the current datasheet and installation instructions for GeoCurtain™ Class 2 Silt Curtain - River Applications - Design-Specific. Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.

Technical datasheets · Installation guides

Request documents for this grade

Engineer specification

Supply and install GeoCurtain™ Class 2 Silt Curtain - River Applications - Design-Specific, manufactured by Geosynthetics Africa Group (fabrication). GeoCurtain Class 2; UV-stabilised PVC float chamber 610 g/m²; 260 g/m² geotextile skirt; closed-cell PE flotation. Skirt depth, ballast, flotation and mooring to the approved site-specific design. Installed by an IAGI Installer Member.

SELECTION · SPECIFICATION · PROJECT SUPPLY

Choose the right specification

Choose the system around the solids, water conditions, containment duty and available working space.

For dewatering, provide slurry characteristics, flow and required filtrate quality; representative trials may be needed.
For curtains or containment articles, define flow, depth, exposure, geometry and anchorage or filling conditions.
Confirm fabric, dimensions, seams, connections, handling and operating limits for the actual system.

Define the quality records

Retain material and fabrication records, inspect deployment and connections, and agree operating inspections and acceptance criteria.

For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.

Why Geosynthetics South Africa

One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
