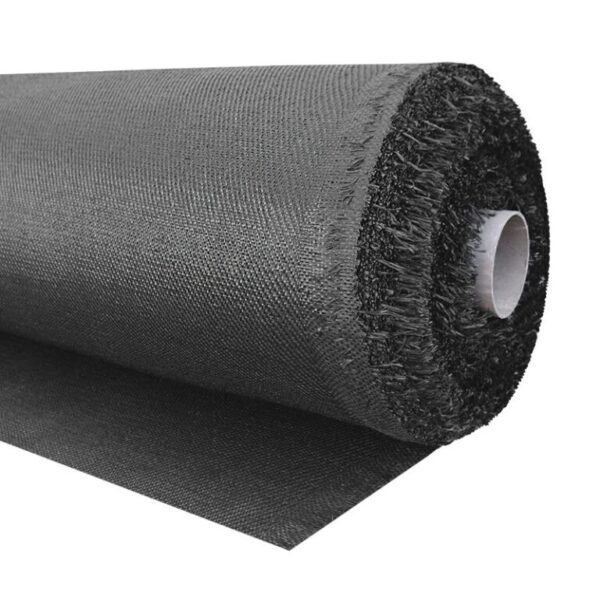

FlowTex™ 180 High Flow Dewatering Geotextile (5.2m x 100m roll)
R26,000
We supply FlowTex™ 180 High Flow Dewatering Geotextile (5.2m x 100m roll). Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.
FlowTex 180 is a woven monofilament geotextile for fabricating dewatering bags, tubes and specified hydraulic protection containers. Its permeable weave allows water to escape while retaining a proportion of suspended solids during dewatering. Supplied in 5.2 m x 100 m rolls for fabrication to the required container design.
Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.
Need help selecting the right grade? View the product selection guide →
Description
Africa’s Leading High Flow Monofilament Dewatering Textile
FlowTex™ 180 is a high - strength, high - flow Monofilament woven geotextile engineered for geotextile dewatering tubes, high - flow dewatering bags, and coastal protection systems including gyrons, breakwaters and revetments. Manufactured in ISO - certified facilities and supplied across Africa with expert installation support.
Key Features
- High flow capacity for rapid dewatering
- Precision filtration to retain fines while resisting clogging
- High tensile strength and puncture resistance
- Large 5.2 m × 100 m rolls reduce seams and speed up installation
Typical Applications
- Dewatering: mining slurries, wastewater sludge, industrial effluents
- Coastal & marine: sand - filled geotextile bags for gyrons, breakwaters, scour control
Specs at a Glance
- Water permeability (EN ISO 11058): 50L/sqm/s
- Characteristic opening size O90 (EN ISO 12956): 180 µm
- Tensile strength MD / CMD (EN ISO 10319): 40 / 40 kN/m
- CBR puncture (EN ISO 12236): 6 kN
- Roll: 5.2 m × 100 m; approx. 140 kg
Need cut panels, sewn bags or full tube fabrication? Geosynthetics Africa offers rapid fabrication, delivery and installation across South Africa and the continent.
Supply, delivery and installation across Africa
Geosynthetics South Africa undertakes projects through three service options:
- Supply only - products supplied to the agreed specification.
- Supply and delivery - materials and logistics coordinated to your project site.
- Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.
For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
Discuss your supply or installation project | Explore our product range
Technical Specifications
| Weight | 140 kg |
|---|---|
| Dimensions | 10000 × 520 cm |
| Water Permeability (EN ISO 11058) | 50 mm/s |
| Opening Size O90 (EN ISO 12956) | 180 µm |
| Tensile Strength (EN ISO 10319) | 40/40 kN/m (MD/CMD) |
| CBR Puncture (EN ISO 12236) | 6 kN |
| Roll Dimensions | 5.2 m x 100 m |
Supply, delivery & installation
South African supply
We are the South African supplier of FlowTex dewatering bags and tubes. Ready-stock standard options are available, with project-specific fabrication for the sizes and details your works require.
Delivery & cross-border supply
We supply FlowTex dewatering bags and tubes across South Africa and Southern Africa, including cross-border delivery. We coordinate site access, unloading and cross-border documentation for your order.
How we install
We install FlowTex dewatering bags and tubes. Prepare a contained, drained dewatering platform and position the bag or tube. Connect the filling ports and confirm sludge and polymer compatibility through the specified trial. Control pumping and fill height, manage filtrate and inspect seams throughout filling.
Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.
Get a supply, delivery & installation quoteProduct documents
Ask for the current datasheet and installation instructions for FlowTex™ 180 High Flow Dewatering Geotextile (5.2m x 100m roll). Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.
Technical datasheets · Installation guides
Request documents for this gradeEngineer specification
Supply and install FlowTex™ 180 High Flow Dewatering Geotextile (5.2m x 100m roll). water permeability en iso 11058: 50 mm/s; opening size o90 en iso 12956: 180 µm; tensile strength en iso 10319: 40/40 kN/m (MD/CMD). Installed by an IAGI Installer Member.
SELECTION · SPECIFICATION · PROJECT SUPPLY
Choose the right specification
Choose the system around the solids, water conditions, containment duty and available working space.
- For dewatering, provide slurry characteristics, flow and required filtrate quality; representative trials may be needed.
- For curtains or containment articles, define flow, depth, exposure, geometry and anchorage or filling conditions.
- Confirm fabric, dimensions, seams, connections, handling and operating limits for the actual system.
Define the quality records
Retain material and fabrication records, inspect deployment and connections, and agree operating inspections and acceptance criteria.
For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.
Why Geosynthetics South Africa
One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
