GeoDrain LD 500 - High-Strength Leak Detection & Venting Drainage Core - HDPE (2.35m x 55m)

Description

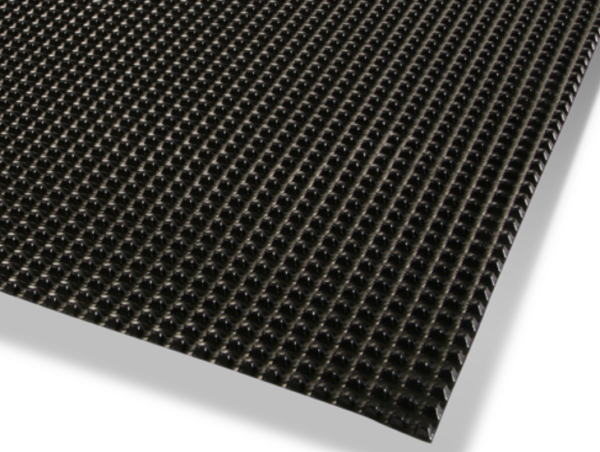

GeoDrain LD 500 is an enhanced-strength HDPE cuspated drainage core designed for containment systems where higher compressive resistance and long-term performance are required. The product provides reliable in-plane drainage for leak detection while maintaining effective gas venting capabilities under sustained loading conditions.

The cuspated geometry ensures consistent flow paths for leaked liquids, allowing rapid conveyance to monitoring systems for early identification of liner breaches. At the same time, the open drainage structure enables controlled venting of gases generated within containment facilities, reducing uplift pressures and improving liner stability.

GeoDrain LD 500 is particularly suited to applications involving deeper containment cells, higher overburden loads, or more demanding operating conditions. The HDPE construction delivers excellent chemical resistance and long-term durability in aggressive environments.

---

Specifications Snapshot

Property	Value
Product Type	Cuspated drainage core
Material	HDPE
Primary Function	Leak detection & gas venting
Nominal Thickness	± 5.0 mm
Dimple Height	± 4.5 mm
Mass	± 500 gsm
Compressive Strength	≥ 1,000 kN/m²
In-Plane Flow Capacity	High (suitable for increased loading conditions)
Roll Dimensions	2.35 m × 55 m
Standard	EN 13252

---

Typical Applications

• High-load leak detection layers

• Gas venting in landfills

• Mining containment systems

• Environmental protection works
