Mirafi Geolon HMi-5 Woven Geotextile (5.2m x 100m )

Description

MIRAFI® Geolon® HMi-5 is a premium woven multifilament polypropylene geotextile developed by Solmax for subgrade stabilisation and base reinforcement. It combines exceptionally high stiffness and tensile strength at extremely low elongation, ensuring minimal deformation, reduced rutting, and superior load distribution under repeated traffic or heavy industrial loads.

This advanced reinforcement fabric is part of Solmax’s MIRAFI® Geolon® HMi Series, designed to extend pavement life, reduce aggregate use, and deliver cost-effective, sustainable performance in transportation, mining, and energy infrastructure.

---

Key Features & Advantages

• High Modulus at Low Strain: Provides reinforcement stiffness up to 1,100 kN/m at minimal elongation, controlling deformation and settlement under load.

• Base & Subgrade stabilisation: Enhances bearing capacity and reduces rut depth-up to 37 % aggregate savings versus unreinforced designs.

• Separation & Filtration: Prevents intermixing of soil and aggregate layers while maintaining excellent water permeability.

• Durability & Robustness: Resists installation damage with high chemical and biological resistance.

• Sustainable Design: Manufactured from 100 % recyclable polypropylene, reducing environmental impact and supporting long-life, low-carbon infrastructure.

• Certified Quality: Produced under strict EN ISO and GRI-GM standards and tested in Solmax-accredited laboratories.

---

Applications

• Road and rail construction over weak subgrades

• Working platforms and haul roads in mining operations

• Embankment and load transfer reinforcement

• Base stabilisation for paved and unpaved roads

• Separation and filtration layers in infrastructure projects

---

Performance Summary

• Tensile strength at 2 - 5 % strain: up to 55 kN/m (MD) and 33 kN/m (CMD)

• High stiffness modulus: ≈ 1,000 - 1,100 kN/m

• Low elongation and creep resistance for long-term stability

• Excellent filtration and drainage capacity (O₉₀ ≈ 300 µm; permeability ≈ 20 mm/s)

---

Installation & Support

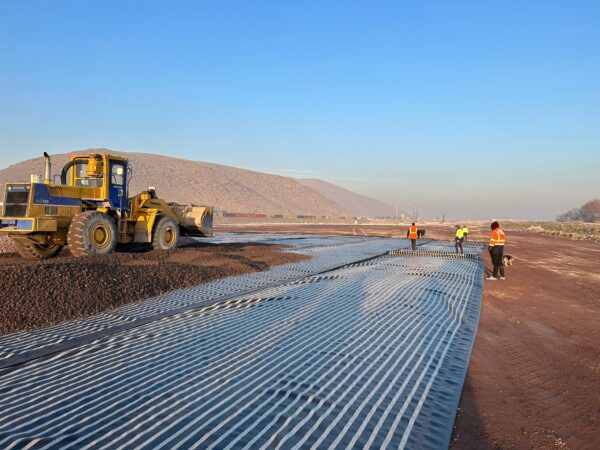

Geosynthetics South Africa provides complete supply, installation, and QA/QC support in compliance with Solmax specifications. Our technical teams ensure proper alignment, overlap, and anchoring to optimize load transfer and friction interaction between soil and base layers.

---

authorised Supply in Africa

Geosynthetics South Africa (Pty) Ltd is an authorised supplier of Solmax MIRAFI® Geolon® products across South Africa and Africa.
We deliver certified reinforcement systems for roads, mining platforms, and civil infrastructure, backed by Solmax’s global engineering expertise and warranty support.

---

MIRAFI® and Geolon® are registered trademarks of Solmax.
Geosynthetics South Africa (Pty) Ltd is an authorised distributor of Solmax MIRAFI® Geolon® materials throughout Africa.
All technical data, brand names, and imagery are used under authorization.
Geosynthetics Africa does not claim ownership of the MIRAFI® or Geolon® trademarks.

Supply, delivery and installation across Africa

Geosynthetics South Africa undertakes projects through three service options:

• Supply only - products supplied to the agreed specification.
• Supply and delivery - materials and logistics coordinated to your project site.
• Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.

For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
