BERA Gravel Fix® Pro - Gravel Stabilisation System
Request a quote
We supply BERA Gravel Fix® Pro - Gravel Stabilisation System. Send us your quantity and delivery location for a quotation, and ask our team to include installation where your project requires it.

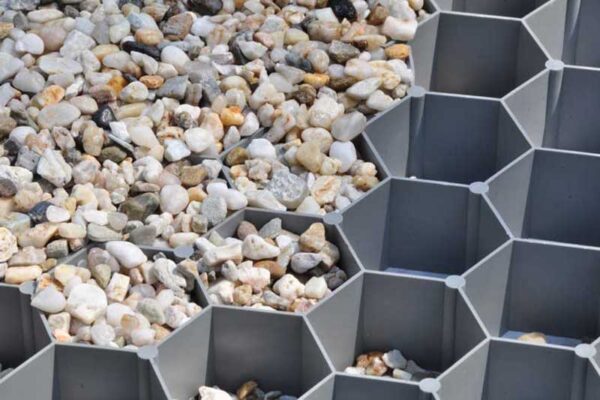

BERA Gravel Fix Pro is a honeycomb gravel-stabilisation panel for driveways, paths and parking areas. Its cells hold gravel in place to create a firmer walking and driving surface while maintaining permeability. Integrated geotextile backing separates the gravel from the base. Supply and installation support are available.
Include the product name, quantity and delivery location. Supply, fabrication and installation can be quoted to your scope.
Need help selecting the right grade? View the product selection guide →
Description

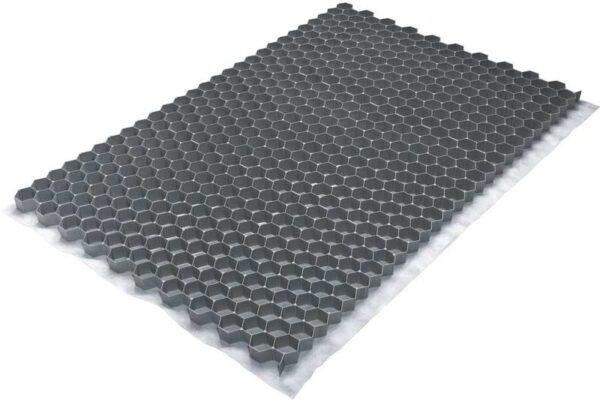

BERA Gravel Fix® Pro is an advanced polypropylene cellular gravel stabilisation system designed to create stable, permeable and load-bearing surfaces.
Each panel incorporates a factory-bonded nonwoven geotextile layer (Typar®) which:
- Prevents subgrade contamination
- Enhances filtration performance
- Reduces weed growth
This creates a structurally stable gravel surface that eliminates rutting, migration and settlement under traffic loading.
Key Engineering Features
Structural Performance
- Vertical compressive strength (filled): >450 t/m²
- Empty panel strength: 95-120 t/m² depending on colour
- Suitable for:
- Passenger vehicles
- Parking areas
- Access roads
- Occasional truck loading
Drainage & Permeability
- Water permeability: 180 L/m²/sec
- Fully permeable system prevents ponding
- Supports SUDS (Sustainable Urban Drainage Systems)
Material & Durability
- Material: 100% polypropylene (recyclable)
- UV and frost resistant
- Geotextile lifespan: >100 years
- Manufactured under:
- ISO9001
- REACH compliance
- EPD certification
Panel Sizes & Dimensions
| Model | Installed Area | Dimensions (mm) | Weight |
|---|---|---|---|
| Pro | 0.9 m² | 1176 × 764 × 32 | 1.4 kg |
| Pro XL | 1.8 m² | Folded system (1176 × 764 × 64 folded / 1528 × 1176 × 32 installed) | 2.8 kg |
| Pro XXL | 2.7 m² | 2292 × 1176 × 32 | 4.2 kg |
Technical Specifications
General
| Property | Value |
|---|---|
| Material | Polypropylene (PP) |
| Cell Structure | Hexagonal |
| Cell Size | 42 mm |
| Panel Depth | 32 mm |
| Wall Thickness | 0.8 - 1.4 mm (tapered) |
| Geotextile | Typar® 68 g/m² |
| Permeability | 180 L/m²/sec |
| UV Resistance | Stabilised |
Aggregate Requirements
- Recommended size: 3 - 16 mm
- Consumption: ~50 L/m² (~75 kg/m²)
- Overfill: 15-20 mm above panel height
Applications
- Gravel driveways
- Parking areas
- Estate roads
- Access roads
- Walkways and pathways
- Landscaping and terraces
- SUDS and permeable paving systems
Installation Method
Subbase Construction
- Pedestrian use: 100 mm compacted sand layer
- Vehicle use:
- 150-250 mm compacted crushed stone
- 40-60 mm leveling sand
Installation Steps
- Prepare and compact subgrade
- Install edge restraints
- Lay panels with geotextile overlap
- Cut panels to fit edges
- Fill with 3-16 mm aggregate
- Overfill and level
Maintenance
- Minimal maintenance required
- Periodic raking and cleaning
- Maintain full gravel cover
Why Geosynthetics South Africa?
- Pan-African supply capability
- Stock availability (key differentiator)
- Installation teams with QA/QC
- Engineering support for civil applications
Supply, delivery and installation across Africa
Geosynthetics South Africa undertakes projects through three service options:
- Supply only - products supplied to the agreed specification.
- Supply and delivery - materials and logistics coordinated to your project site.
- Supply, delivery and QA/QC-controlled installation - one coordinated scope from procurement to documented handover.
For projects across Africa, we coordinate with the Geosynthetics Africa Group to mobilise installation crews from group companies across the continent. Materials, delivery, mobilisation and project-specific quality records are agreed as part of the project scope.
Discuss your supply or installation project | Explore our product range
Supply, delivery & installation
South African supply
We are the South African supplier of BERA Gravel Fix Pro gravel-stabilisation panels. We have ready stock of standard grades and formats for South African projects.
Delivery & cross-border supply
We supply BERA Gravel Fix Pro gravel-stabilisation panels across South Africa and Southern Africa, including cross-border delivery. We coordinate site access, unloading and cross-border documentation for your order.
How we install

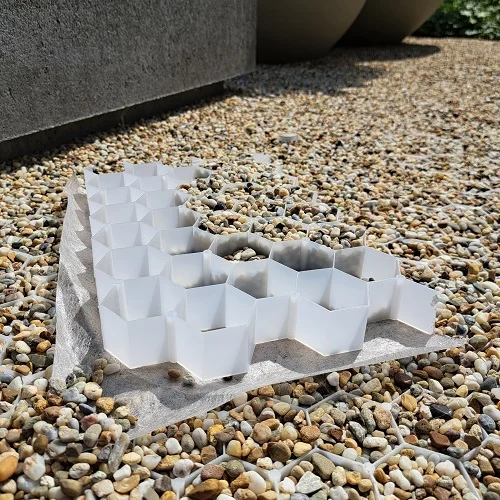

We install BERA Gravel Fix Pro gravel-stabilisation panels. Prepare and compact the designed foundation and fit edge restraints. Lay BERA panels with the attached geotextile lips overlapping, then cut around boundaries and obstacles. Fill with suitable 3–16 mm gravel, maintaining the specified overfill above the cells, and inspect the finished level.
Specialist installation supported by Geosynthetics Africa (Pty) Ltd, an IAGI Installer Member.
Get a supply, delivery & installation quoteProduct documents
Ask for the current datasheet and installation instructions for BERA Gravel Fix® Pro - Gravel Stabilisation System. Identify the catalogue grade / SKU in your request so the technical submission matches the material quoted.
Technical datasheets · Installation guides
Request documents for this gradeEngineer specification
Supply and install BERA Gravel Fix® Pro - Gravel Stabilisation System. Material: Recycled or pure polypropylene; recyclable -; Cell size: 42 mm; Pro sheet dimensions L x W x H: 1176 x 764 x 32 mm; Attached geotextile: DuPont™ Typar®; 68; thermally welded g/m². Installed by an IAGI Installer Member.
SELECTION · SPECIFICATION · PROJECT SUPPLY
Choose the right specification
Select a complete permeable surface system for the proposed traffic, finish and ground conditions.
- Identify gravel or grass finish, loading, access requirements and the exact panel product.
- Design the subgrade, base, drainage and edge restraint for the site.
- Confirm infill, installation, establishment and maintenance requirements for the selected system.
Define the quality records
Inspect formation, base and drainage, panel condition and interlock, edges and infill, with the specified surface acceptance checks.
For a useful quotation: send the grade or performance specification, quantity, location, required date and scope. Availability, delivery and installation responsibilities are confirmed in the quotation.
Why Geosynthetics South Africa
One enquiry coordinates the specified product, technical submission, delivery and any agreed installation and QA/QC scope. We define quantities, programme, responsibilities and handover requirements against your project.
