GLOBAL STANDARDS. AFRICAN EXECUTION.
Eurobent™ Geosynthetic Clay Liners (GCL) | South Africa
Reinforced needle-punched geosynthetic clay liners (GBR-C) with a natural sodium bentonite core, engineered with a Thermal Locking system
Reinforced Needle-Punched Bentonite Barrier Systems – South Africa
Geosynthetics Africa supplies Eurobent™ Geosynthetic Clay Liners (GCL) across South Africa and Africa for landfill lining, mining containment, tailings storage facilities (TSF), secondary containment systems and civil environmental barriers.

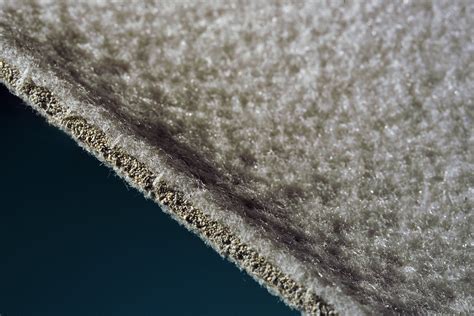

Eurobent GCL is a factory-manufactured hydraulic barrier consisting of high-swelling natural sodium bentonite encapsulated between geotextiles and mechanically reinforced through needle-punching and thermal locking.
The result is a low-permeability, self-sealing bentonite barrier engineered for long-term environmental containment performance.
Thermal-Lock Bonding: Superior Structural Integrity
EuroBent™ GCLs are constructed with Thermal-Lock bonding, where the nonwoven geotextile is heat-fused to the woven carrier layer after needle-punching. This:
Enhances internal shear strength for slopes and elevated load conditions
Prevents bentonite migration even under settlement or hydration
Improves durability and resistance to puncture or pull-out forces
Maintains consistent liner performance throughout installation and service life
Why Choose EuroBent™ GCLs?
Engineered to ISO 10318-1 standard: GBR-C classification
High-purity natural sodium bentonite core
Ultra-low hydraulic conductivity (≤ 5.0 × 10⁻¹¹ m/s)
Lightweight, roll-based system for rapid installation
Lower CO₂ impact than compacted clay liners
Available in multiple performance grades (EB3500 to EB6000)
Applications of EuroBent™ GCLs
EuroBent™ GCLs provide impermeable containment in:
Mining: tailings dams, leach pads, processing ponds
Waste: municipal and industrial landfill liners and capping
Water: stormwater basins, dams, canals, and irrigation ponds
Civil Infrastructure: road embankments, tunnels, culverts
Agriculture & Aquaculture: fish ponds, lined reservoirs, water harvesting
EuroBent™ vs Traditional Clay Liners
| Feature | EuroBent™ GCL | Compacted Clay Liner |
|---|---|---|
| ISO Classification | GBR-C (ISO 10318-1) | Not standardized |
| Hydraulic Conductivity | ≤ 5.0 × 10⁻¹¹ m/s | ~1 × 10⁻⁹ m/s |
| Installation Time | Quick – roll and anchor | Slow – requires compaction |
| Thickness | ~6–8 mm | ≥ 500 mm |
| Shear Strength | High (thermal-bonded geotextiles) | Variable |
| Logistics | Lightweight, roll format | Heavy bulk transport |
EuroBent™ GCL Grades – At a Glance
| Grade | Bentonite(g/m²) | Thickness(mm) | Permeability(m/s) |
|---|---|---|---|
| EB3500 | 3500 | 5.8 | ≤ 5.0 × 10⁻¹¹ |
| EB4000 | 4000 | 6.6 | ≤ 5.0 × 10⁻¹¹ |
| EB4500 | 4500 | 6.8 | ≤ 5.0 × 10⁻¹¹ |
| EB5000 | 5000 | 7.4 | ≤ 5.0 × 10⁻¹¹ |
| EB6000 | 6000 | 7.8 | ≤ 5.0 × 10⁻¹¹ |
African Coverage & Industry Expertise
Geosynthetics Africa continues to serve clients across:
Mining operations in West, Central, and Southern Africa
Waste management authorities and private landfill operators
Agricultural irrigation projects and water authorities
Infrastructure contractors and engineering consultants
With the introduction of EuroBent™ GCLs, we bring even greater value and technical assurance to the markets we already know and support.
Full-Service Support
Our offering includes:
Project-specific material selection
Roll layout plans and anchoring details
On-site installation guidance
QA/QC and post-installation inspection
Technical documentation for tender and regulatory compliance
Request a Quote or Site Review
Looking for an ISO-compliant, high-performance bentonite liner for your project? Contact Geosynthetics Africa for trusted supply and support of EuroBent™ GCLs across Africa.
Certified Containment Systems For Critical Infrastructure
Geosynthetic Clay Liner (GCL) Solutions For Engineered Containment Applications
Our engineered GCL, bentonite and geosynthetic clay liner systems provide ultra-low permeability barriers for landfill, mining, water, and environmental containment projects across Africa.
